The ABI Stack
ABI is organized as five runtime layers and four Python packages. The layers describe how the system operates at runtime; the packages describe how the code is structured.

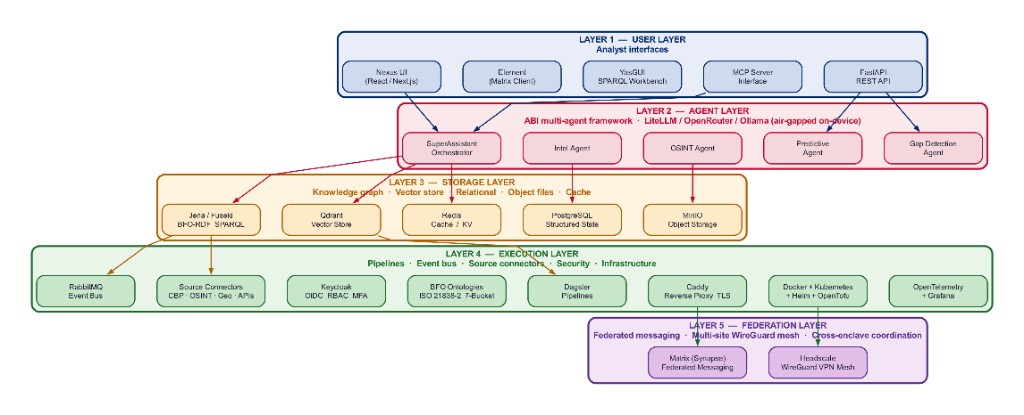

Five-layer architecture
| Layer | Role |
|---|---|
| User Layer | Nexus Web UI (React), REST API (FastAPI), MCP protocol integration, SPARQL workbench |
| Agent Layer | SuperAssistant orchestrator + domain agents (Intel, OSINT, Predictive, Gap Detection). LiteLLM / OpenRouter / Ollama for LLM access |
| Storage Layer | Jena/Fuseki knowledge graph, Qdrant vector store, PostgreSQL agent memory, MinIO object storage. BFO's shared formal vocabulary enables semantic federation: any system aligned to the same ontology can query and exchange knowledge without custom connectors |
| Execution Layer | BFO ontologies, Dagster pipelines, source connectors (REST, RSS, file, DB), Keycloak security, Caddy reverse proxy, Docker + Kubernetes + Helm |
| Federation Layer | Matrix/Synapse federated messaging, Headscale WireGuard VPN mesh for multi-site coordination across geographically distributed deployments |
The four packages
┌─────────────────────────────────────────────────────────────┐
│ naas-abi-cli abi stack / abi chat / abi deploy │
├─────────────────────────────────────────────────────────────┤
│ naas-abi Agents · Nexus · Pipelines · Modules │
│ naas-abi-marketplace Community integrations and agents │
├─────────────────────────────────────────────────────────────┤
│ naas-abi-core Engine · Services · Module runtime │
└─────────────────────────────────────────────────────────────┘
| Package | Path | What it is |
|---|---|---|
naas-abi-core | libs/naas-abi-core/ | The infrastructure library. Engine, ports, service adapters (triple store, vector store, object storage, bus, key-value, cache, secrets). Publishable as a standalone Python package. No agents, no business logic. |
naas-abi | libs/naas-abi/ | The application layer. Built-in agents, the Nexus web app and its FastAPI backend, core pipelines, and ontologies. Imports naas-abi-core. |
naas-abi-marketplace | libs/naas-abi-marketplace/ | Community-contributed modules, integrations, and agents. All disabled by default, enabled selectively via config.yaml. |
naas-abi-cli | libs/naas-abi-cli/ | The abi command-line tool. abi stack start/stop/status, abi chat, abi deploy. |
Inside naas-abi: the module layers
Within the application layer, modules follow a three-tier separation:
libs/naas-abi/naas_abi/
├── apps/
│ ├── nexus/ # Full-stack web app (Next.js + FastAPI)
│ ├── api/ # Core REST API
│ ├── mcp/ # MCP server
│ └── sparql_terminal/
├── agents/ # Built-in agents (AbiAgent, OntologyEngineerAgent, ...)
├── pipelines/ # Data ingestion pipelines
└── modules/
├── core/ # Always-loaded system modules
├── custom/ # Your private modules (not committed to upstream)
└── marketplace/ # Community modules (from naas-abi-marketplace)
Inside naas-abi-core: services and the engine
naas_abi_core/
├── engine/ # Engine, EngineProxy, EngineConfiguration, loaders
├── module/ # BaseModule, ModuleConfiguration, ModuleDependencies
├── services/
│ ├── triple_store/ # RDF triple store (Apache Jena Fuseki, Oxigraph, Neptune, FS)
│ ├── vector_store/ # Vector embeddings (Qdrant, in-memory)
│ ├── object_storage/ # File/blob storage (FS, S3, Naas)
│ ├── secret/ # Secret management (dotenv, Naas, base64)
│ ├── bus/ # Message bus (Python queue, RabbitMQ)
│ ├── keyvalue/ # Key-value store (in-memory, Redis)
│ ├── cache/ # Result cache (filesystem)
│ ├── ontology/ # Ontology service (NER port)
│ └── agent/ # Agent base class + IntentAgent
├── models/ # Model registry (OpenRouter, local, airgap)
└── utils/ # onto2py, SPARQL helpers, graph utils, lazy loader
The data flow
External services → Integrations → Pipelines → Knowledge Graph (Triple Store)
↓
SPARQL Queries
↓
User / API ← Agents ← Workflows ← Tools
- Integrations talk to external APIs (GitHub, LinkedIn, Salesforce, etc.) and return raw data.
- Pipelines transform raw data into OWL/RDF triples and store them in the triple store.
- Workflows implement business logic. They query the knowledge graph with SPARQL and call integrations for write operations.
- Agents are LLM-powered routers that select and invoke the right workflows and integrations as tools.
- Apps (REST API, MCP, Nexus) expose agents and workflows to end users and other systems.
What runs in production
A production ABI deployment runs these Docker services:
| Service | Port | Purpose |
|---|---|---|
| Fuseki (Jena TDB2) | 3030 | Primary triple store |
| Qdrant | 6333 | Vector store |
| PostgreSQL | 5432 | Agent memory + Nexus app data |
| RabbitMQ | 5672 | Message bus |
| MinIO / S3 | 9000 | Object storage |
| ABI API | 9879 | FastAPI REST API |
| Nexus frontend | 9879/app | Next.js web app |
| Dagster | 3001 | Orchestration UI |
| MCP server | 8000 | Model Context Protocol |
For local development, lightweight alternatives replace the production services (in-process queue instead of RabbitMQ, in-memory key-value instead of Redis, Oxigraph instead of Fuseki, qdrant-in-memory).
